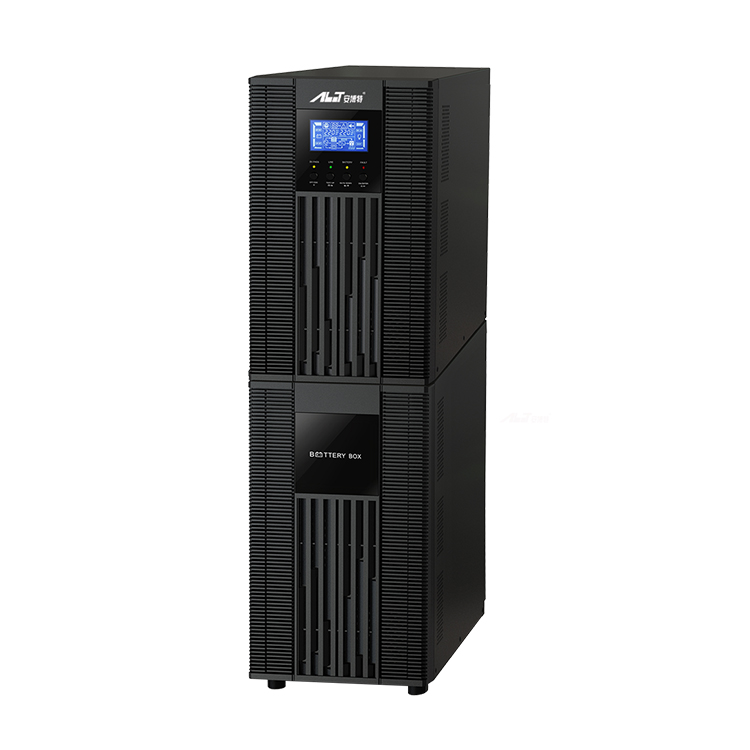

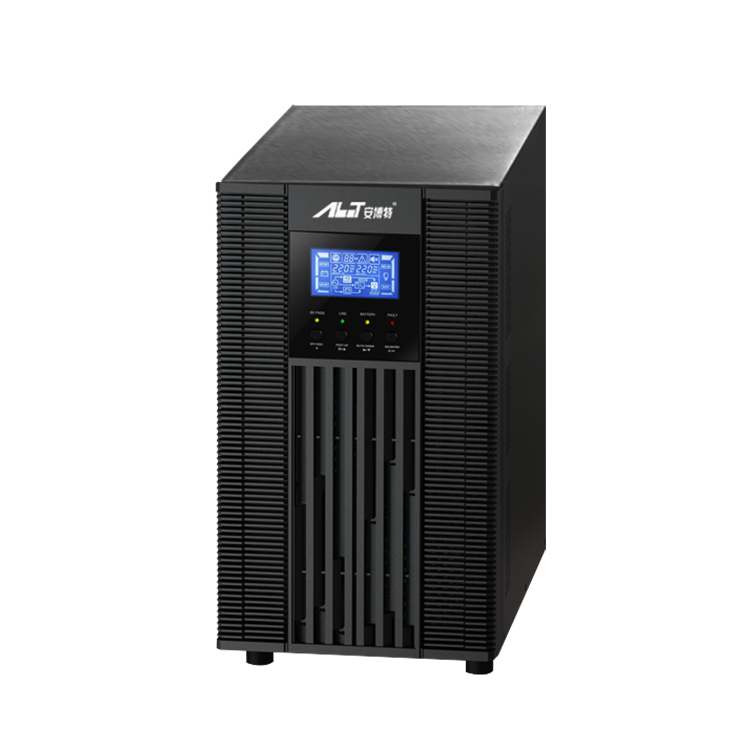

Single Phase Online UPS
Single Phase Online UPS is capable of providing a good power supply for equipment load. Adopt CPU control system, full detection and protection functions. 44Hz high frequency technology with small size and light weight, high working efficiency. Suitable for kinds of precision instruments, network system and equipments which require a strict power environment. It is widely used for home appliance, computer, servers, data-center critical network devices, sensitive electronic equipment, telecom, bank, hospital, etc.

Model

BK1K

BK2K

BK3K

BK6K

BK10K

Rated Capacity

0.7KW

1.4KW

2.1KW

4.2KW

7KW

UPS Input Voltage

115~300VAC

176~276VAC

UPS Input Frequency

40~60Hz(adjustable)

45~55Hz

UPS Output Voltage

220*(1±0.2%)VAC

UPS Output Frequency

50*(1±0.2%)Hz (battery mode)

Backup Time/Minutes

>5‘13‘

>9‘20‘

>5‘/15‘

>8‘24‘

Battery Voltage

DC36V

DC96V

DC240V

Overload Ability

110%-150%, 30 seconds turn to bypass
150%, 200ms

105%-130% 10 minutes
over 130%, 1 minute

Communication Interface

RS-232+Intelligent Slot

Ambient Temperature

0-40℃

Relative Humidity

20%-90%

lDouble conversion online technology.

lSelf-test when UPS start.

lMCU intelligent control

lOnline design, pure sine wave of output, free from wave distortion.

lAdopt high frequency and IGBT exchange technology, improve efficiency and reliability of UPS.

lIntelligent UPS design, use PFC power factor correction, PFC≥0.95, zero conversion time.

lSmart local and remote monitoring function, RS232 port, compatible with SNMP.

lSelf detection and protection functions, high resistance ability of load impact, over current and over circuit protection functions.
Single Phase Online UPS will output with pure sine wave, free from wave distortion. From 1KVA to 10KVA available, RS232 port to achieve remote control. High quality, stable performance. We also produce voltage stabilizer, solar inverter and transformer. Welcome inquiry. Please check the detailed information of Single Phase Online UPS as below.

Product Feature And Application
Single Phase Online UPS is widely used for computer, bank, medical equipment, data center, etc.

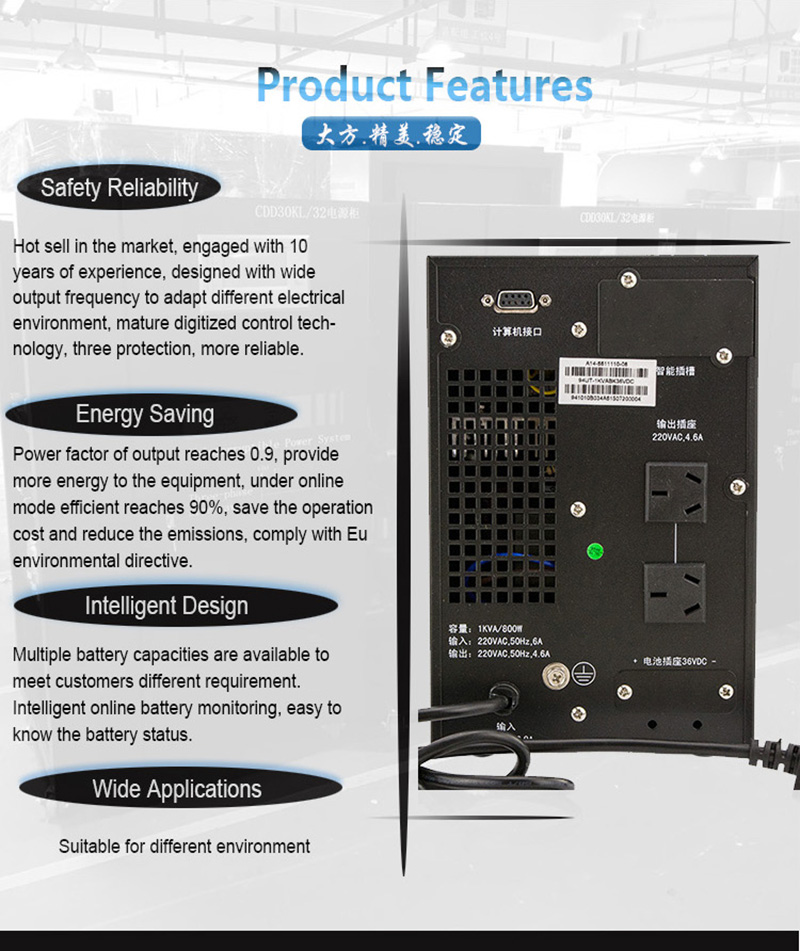

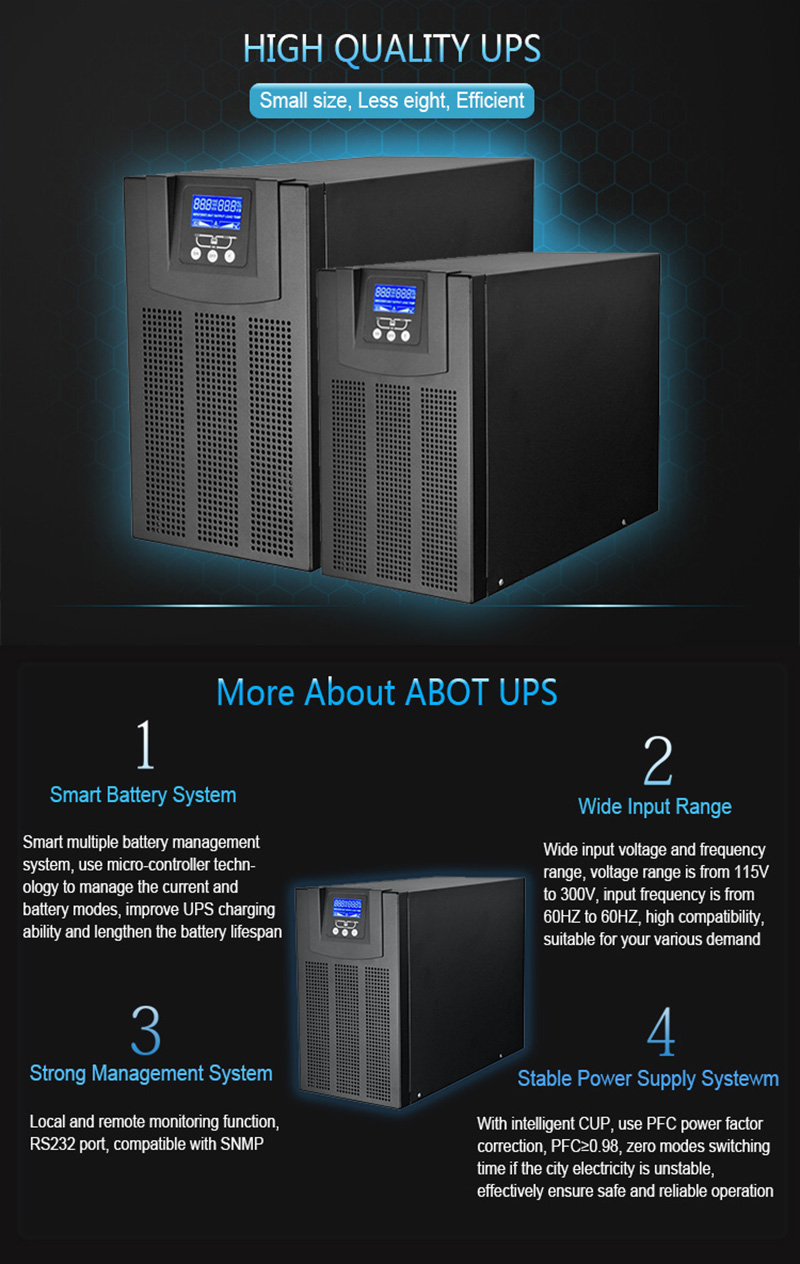

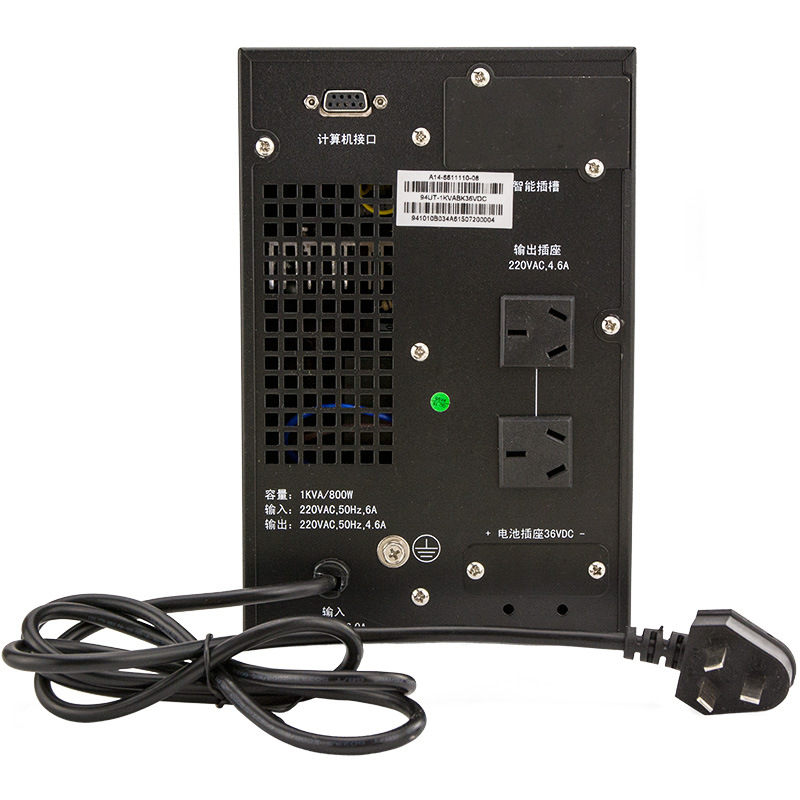

Product Details
The Details of Single Phase Online UPS as below:




Product Qualification
The Qualification of Single Phase Online UPS as below:
Deliver,Shipping And Serving
Single Phase Online UPS will be covered by stretch film, then packed with a standard exporting wooden box. Can be shipped by Express, Air and Sea transportation.
