Open Type 3 Phase Isolation Transformer
Open Type 3 Phase Isolation Transformer is a three phase in and three phase out dry type transformer. The power capacity varies from 1KVA to 2000KVA, based on 50/60HZ request. Use good quality silicone steel sheet and windings, to have stable working performance and long lifespan. Full power capacity to power up the loading equipment without any problem.

Product information

Desc #

Open Type 3 Phase Isolation Transformer

Type

Dry type

Input Voltage (Primary)

110V/ 120V/ 208V/ 220V/ 230V/ 240V/ 380V/ 415V/ 480V (or customized)

Output Voltage (Secondary)

110V/ 120V/ 208V/ 220V/ 230V/ 240V/ 380V/ 415V/ 480V (or customized)

Phase

Three Phase

Frequency

50Hz/60Hz

Insulation Resistance

≥5 MΩ

Electrical Strength

3000V AC/1 min

Efficiency

>95%

Power Factor

0.8

Noise

35-65dB (1 meter)

Enclosure

Without

Ambient Temperature

-20C~45℃

Relative Humidity

0~90%, Non-condensing

Cooling Method

Dry type air cooling

lGood over load ability

lHigh efficiency

lLong lifespan

lEasy to install and operate

lWide applications
Open Type 3 Phase Isolation Transformer is produced by ABOT Power Supply, a company located in Shenzhen city, China, we are a high technology manufacturer since the year of 2008, focusing on voltage stabilizer, dry type transformer, UPS and solar inverter. We are interested in having agents all over the world, welcome send us inquiry to discuss more. Please check the detailed information of Open Type 3 Phase Isolation Transformer as below.

Product Feature And Application
Open Type 3 Phase Isolation Transformer is widely used for CNC machine, Lighting, Medical Equipment, Automation Equipment.

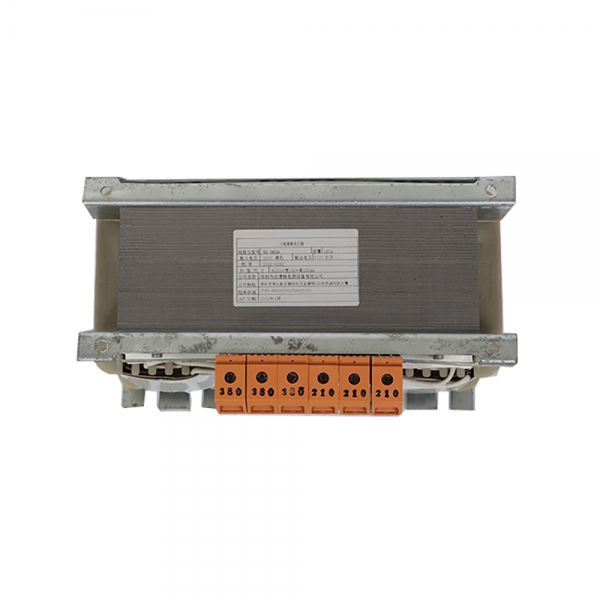

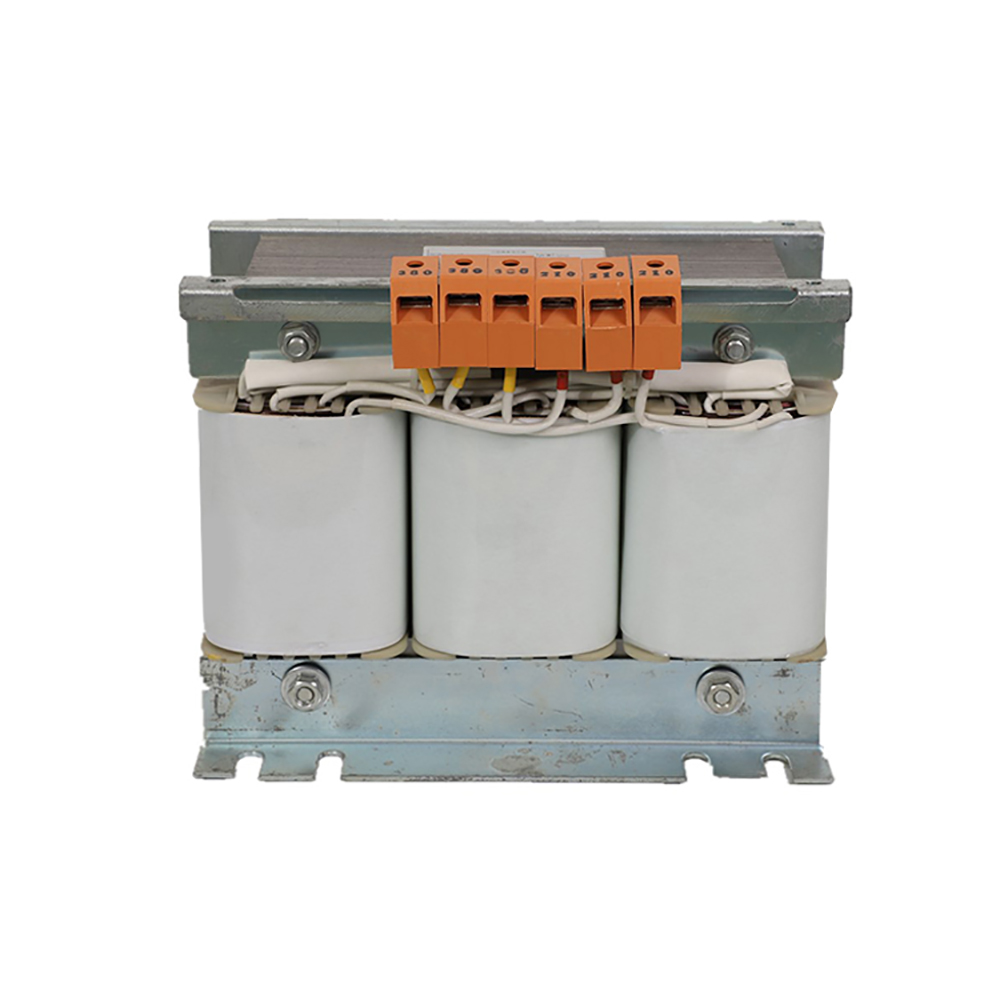

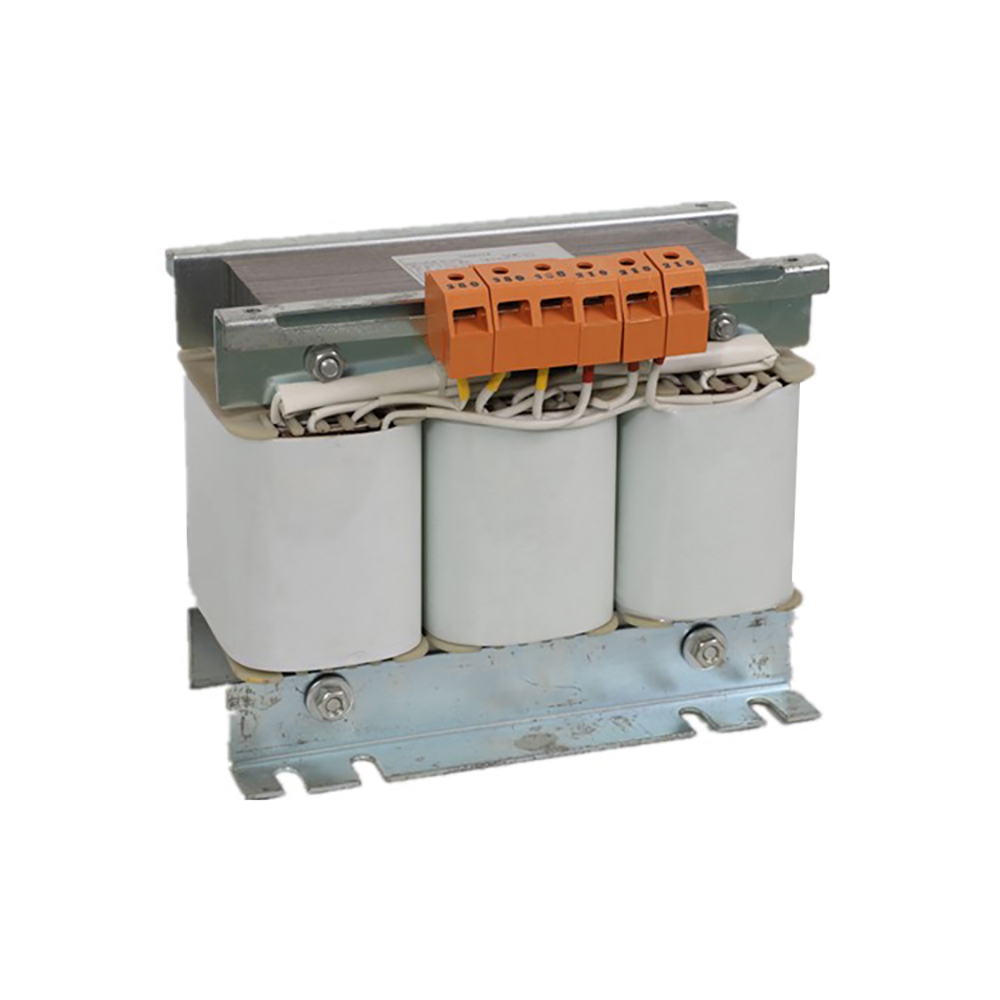

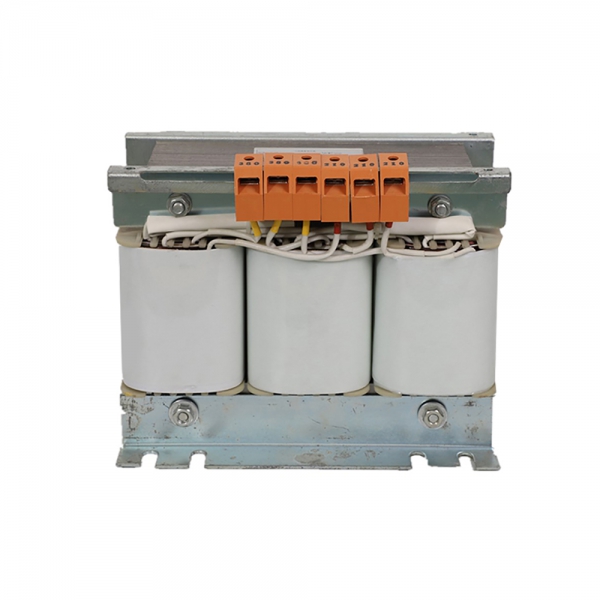

Product Details
The Details of Open Type 3 Phase Isolation Transformer as below:
Product Qualification
The Qualification of Open Type 3 Phase Isolation Transformer as below:
Deliver,Shipping And Serving
Open Type 3 Phase Isolation Transformer will be covered by stretch film, then packed with a standard exporting wooden box. Can be shipped by Express, Air and Sea transportation.
