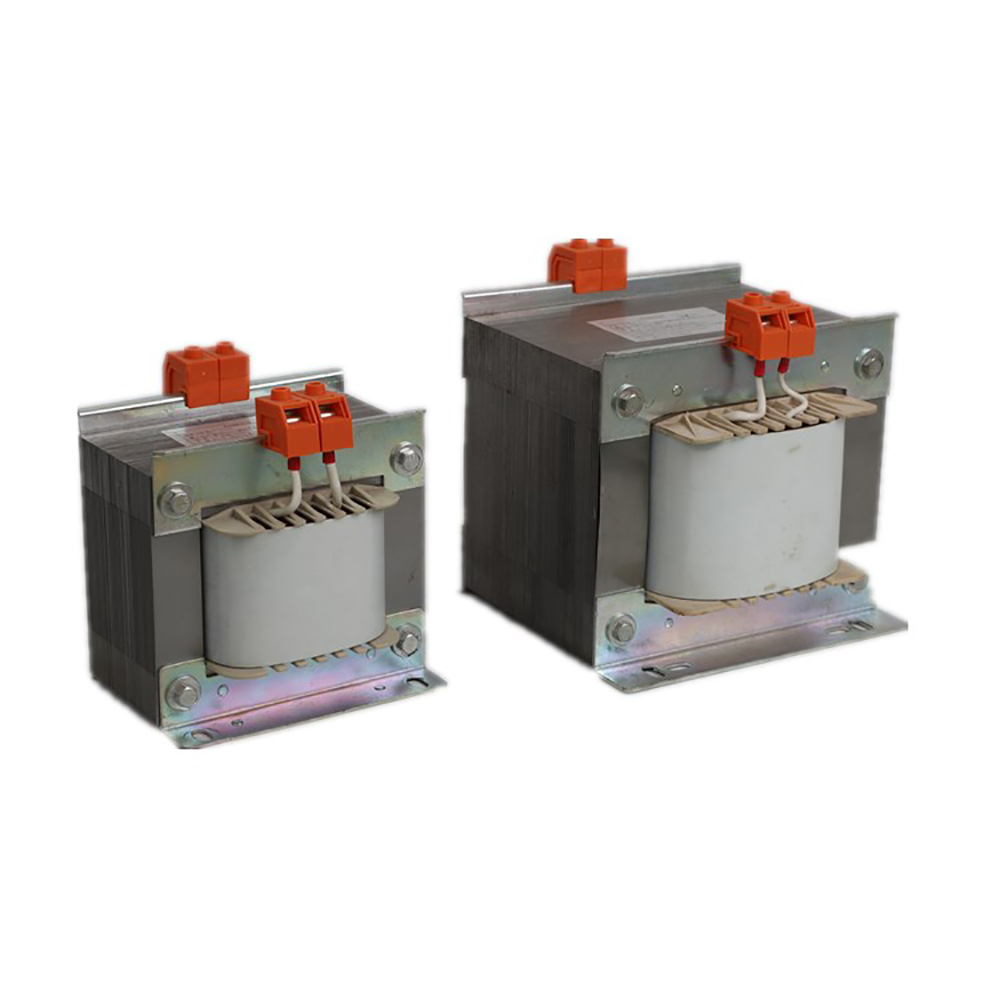

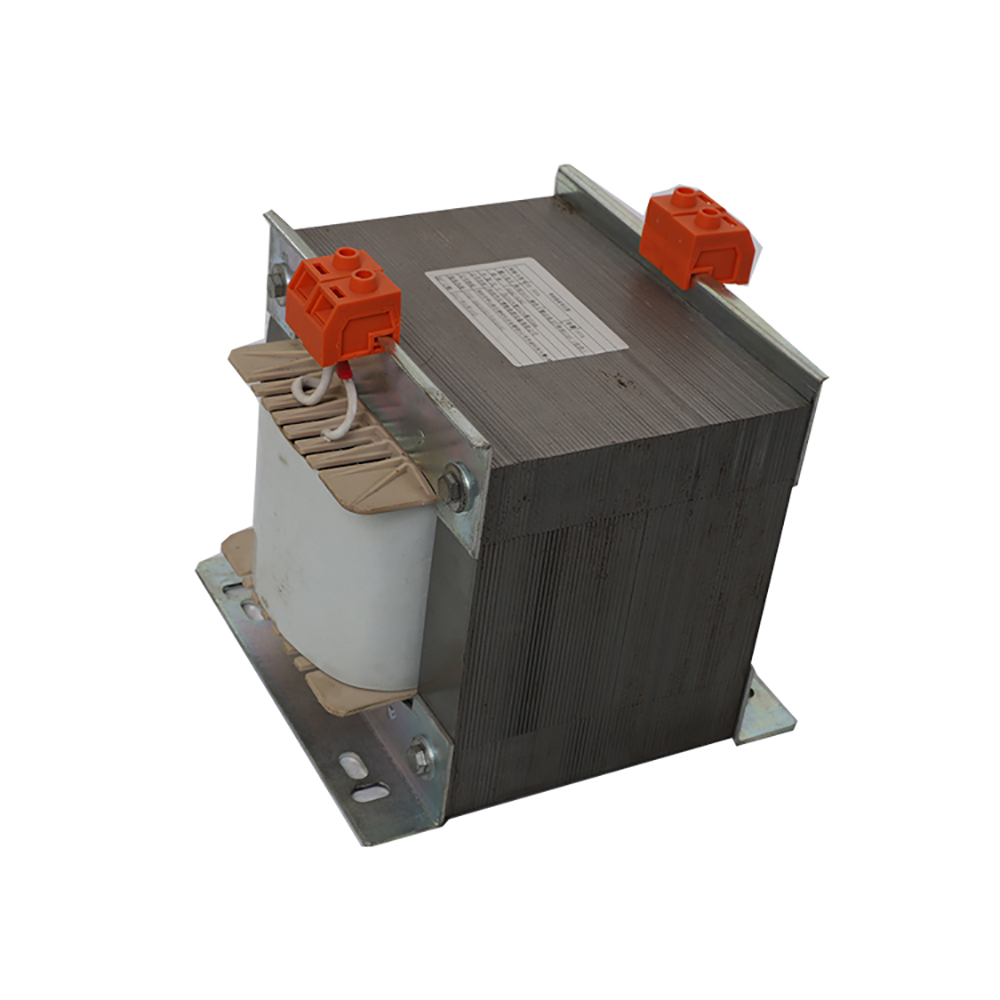

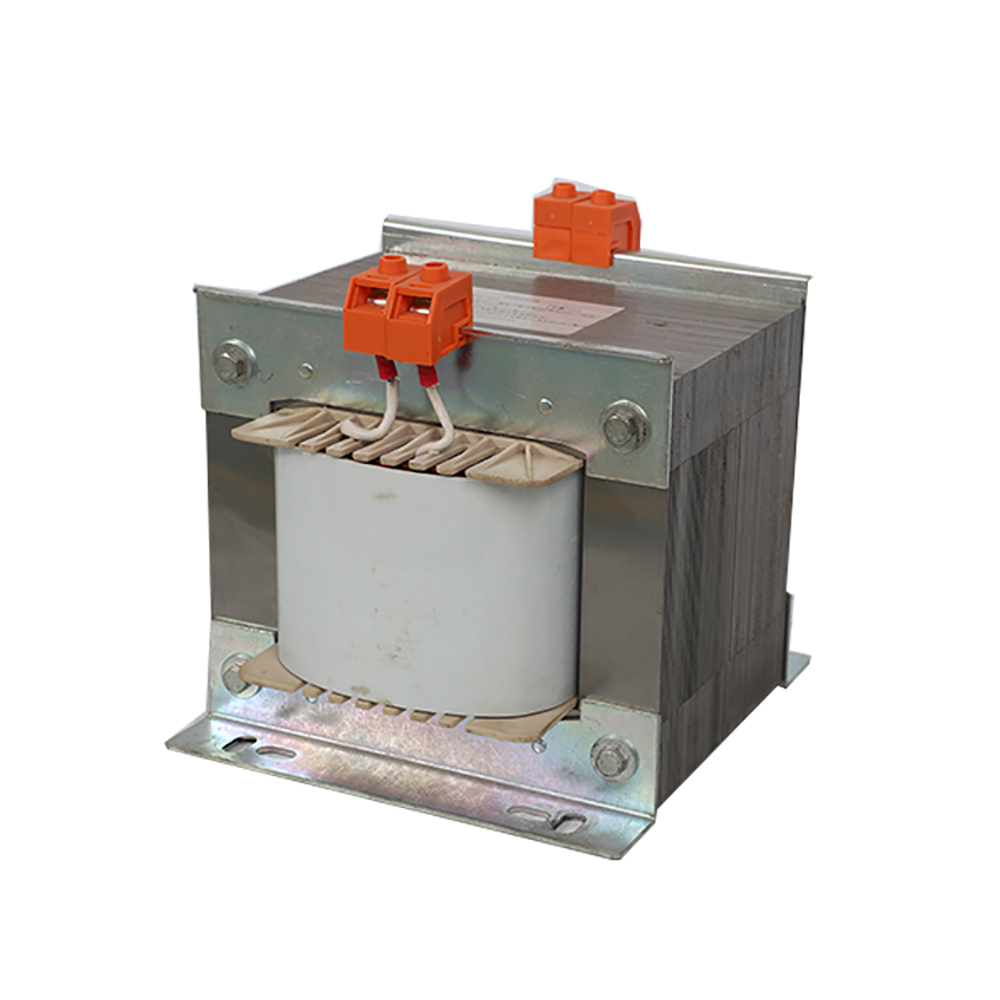

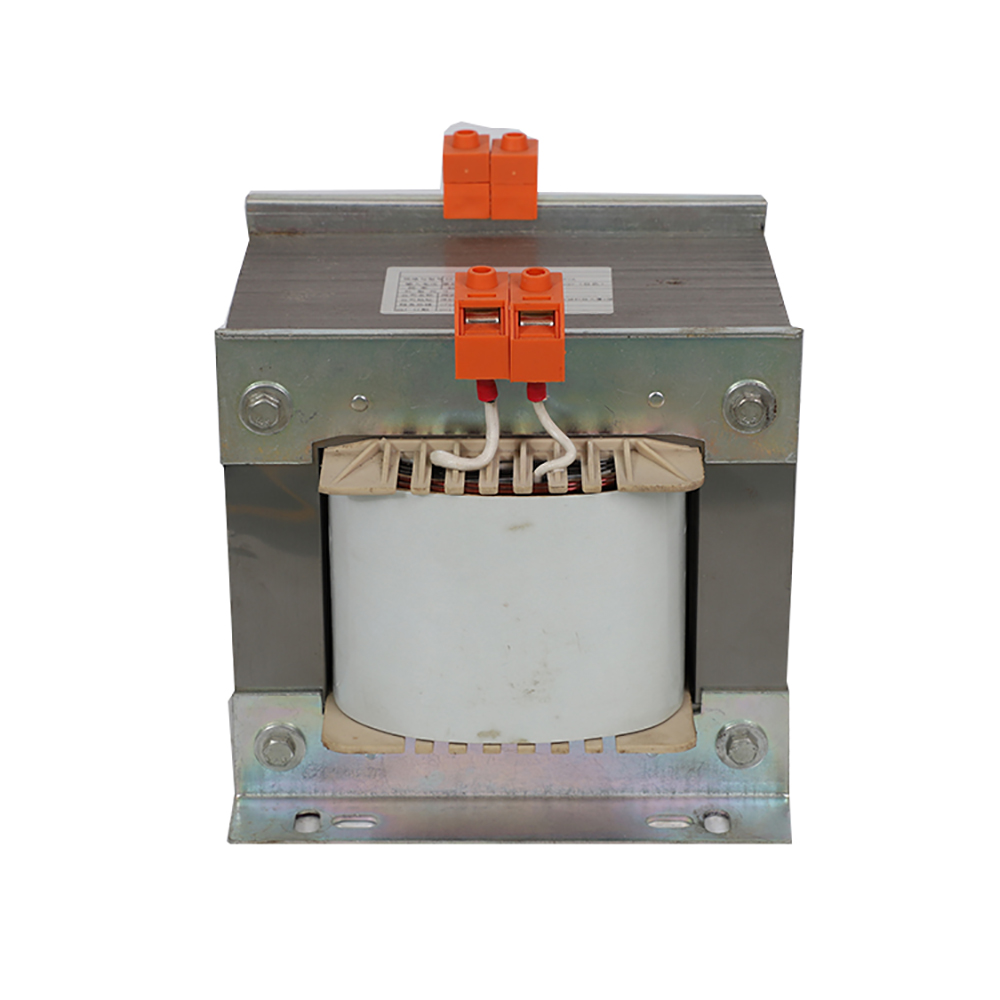

Open Type Single Phase Isolation Transformer
Open Type Single Phase Isolation Transformer is to change the input voltage to the desired output voltage, it is single phase to single phase, with long working lifespan, stable performance and moderate price. When the main power on site is different from the loading equipment, the transformer will perfectly solve this problem. Full power capacity, long lifetime, high efficiency make it sells very well in the market.

Product information

Desc #

Open Type Single Phase Isolation Transformer

Type

Dry type

Input Voltage (Primary)

110V/ 120V/ 208V/ 220V/ 230V/ 240V/ 380V/ 415V/ 480V (or customized)

Output Voltage (Secondary)

110V/ 120V/ 208V/ 220V/ 230V/ 240V/ 380V/ 415V/ 480V (or customized)

Phase

Single Phase

Frequency

50Hz/60Hz

Insulation Resistance

≥5 MΩ

Electrical Strength

3000V AC/1 min

Efficiency

>95%

Power Factor

0.8

Noise

35-65dB (1 meter)

Enclosure

Without

Ambient Temperature

-20C~45℃

Relative Humidity

0~90%, Non-condensing

Cooling Method

Dry type air cooling

lGood over load ability

lWith fan for air cooling

lHigh efficiency

lGauge to display voltage

lLong lifespan

lEasy to install and operate

lWide applications
Open Type Single Phase Isolation Transformer is 100% produced by ABOT Power Supply, the windings can be pure copper or aluminum, it is widely used for electronic production, automation, and other industrial field. We also produce voltage stabilizer, uninterrupted power supply and solar inverter. Open Type Single Phase Isolation Transformer information are as below.

Product Feature And Application
Open Type Single Phase Isolation Transformer is widely used for CNC machine, Lighting, Medical Equipment, Automation Equipment.

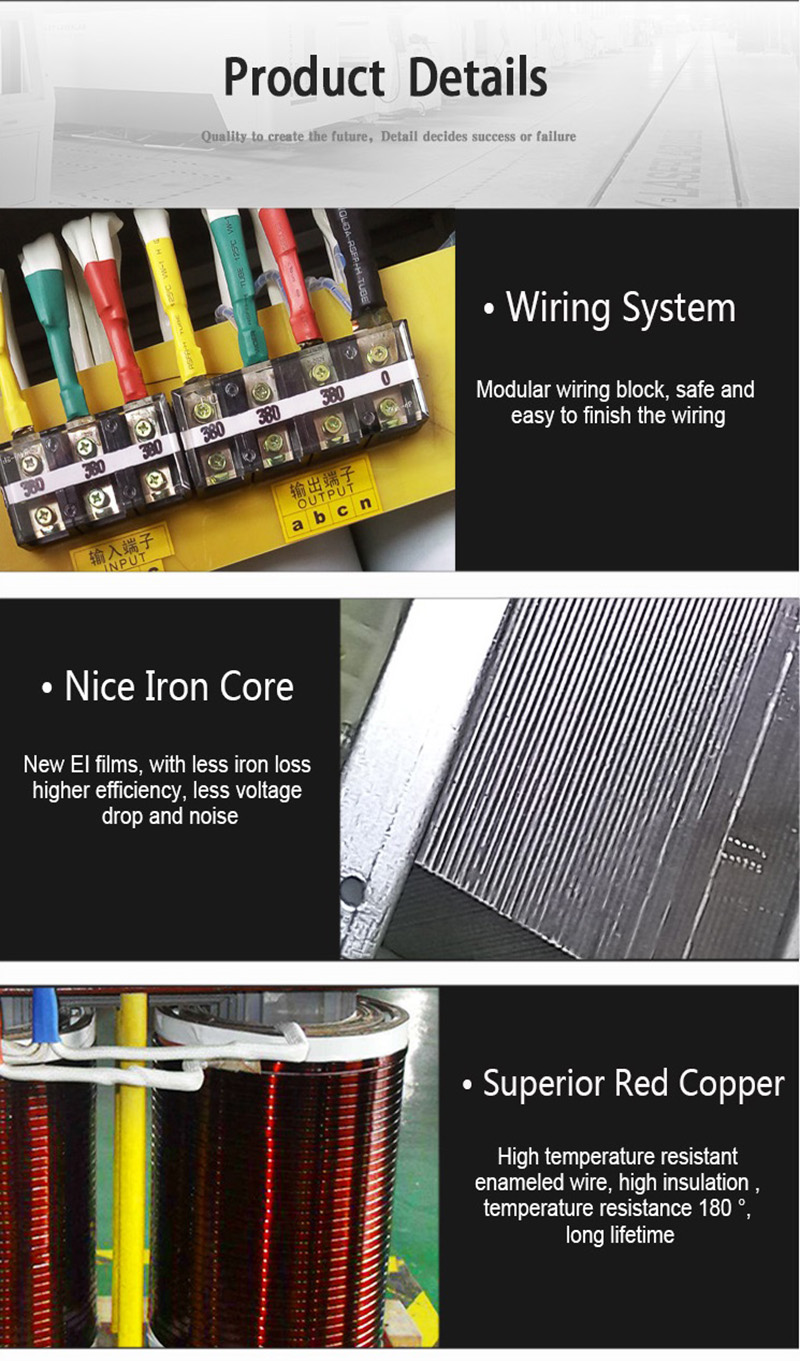

Product Details
The Details of Open Type Single Phase Isolation Transformer as below:
Product Qualification
The Qualification of Naked Single Phase Auto Transformer as below:
Deliver,Shipping And Serving
Open Type Single Phase Isolation Transformer will be covered by stretch film, then packed with a standard exporting wooden box. Can be shipped by Express, Air and Sea transportation.
