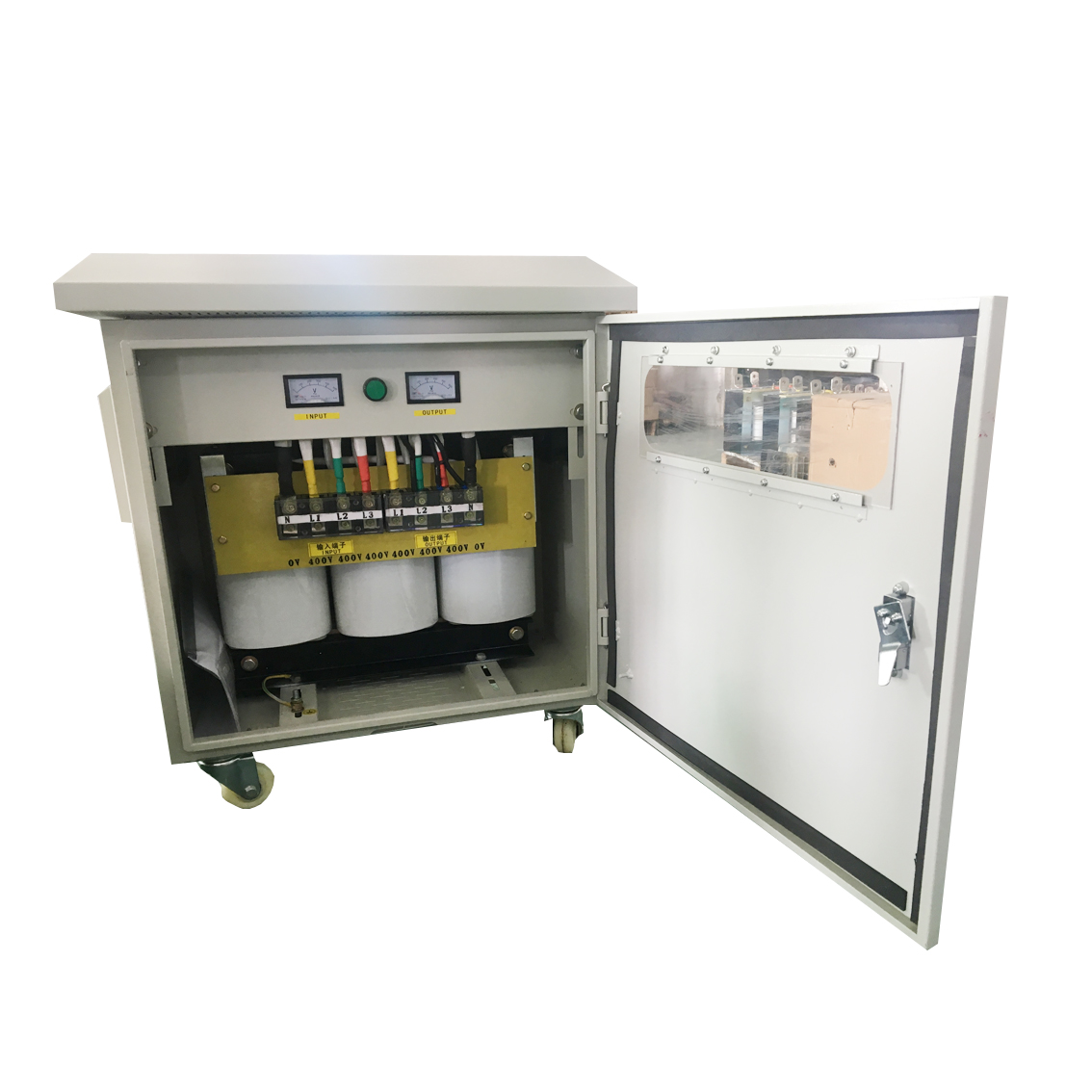

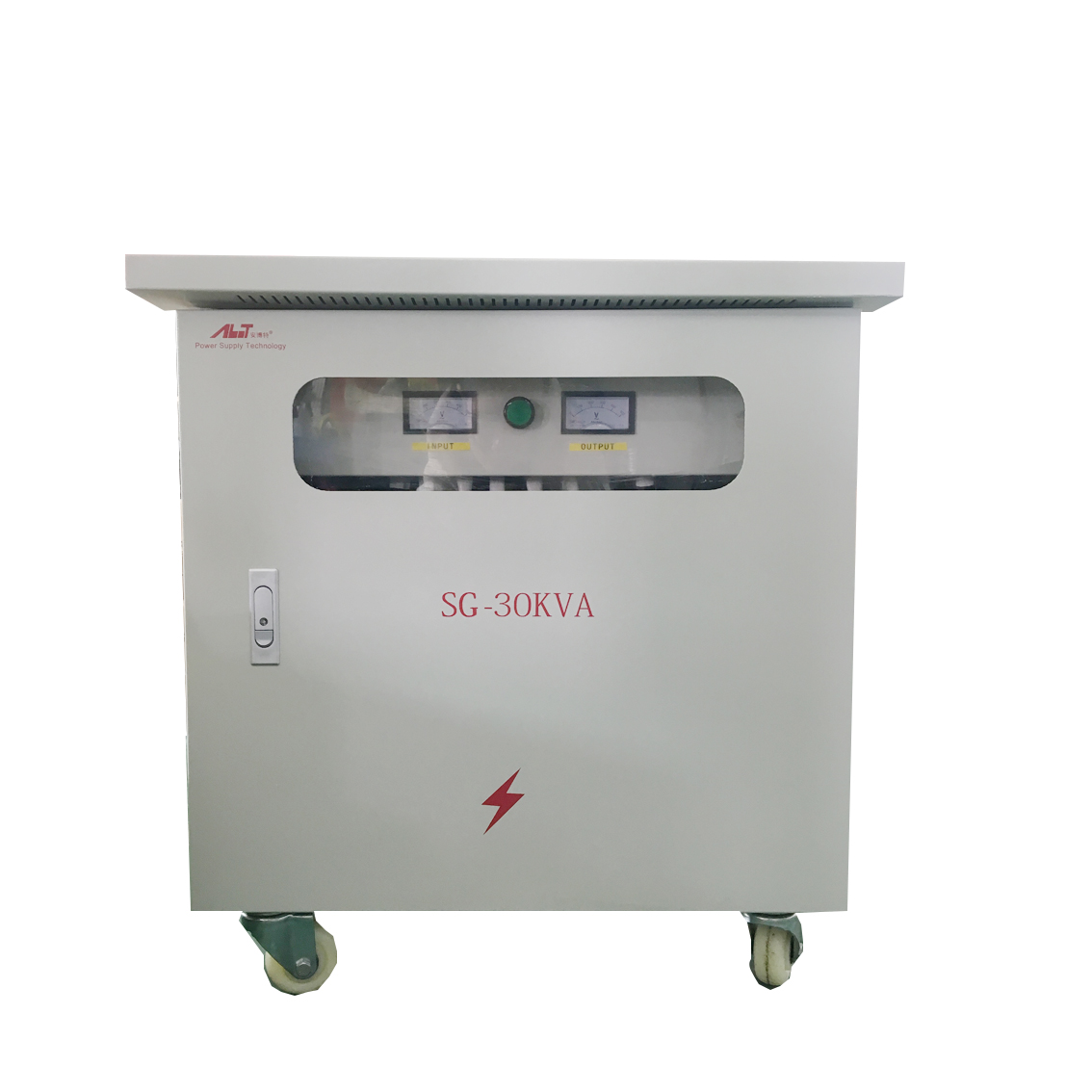

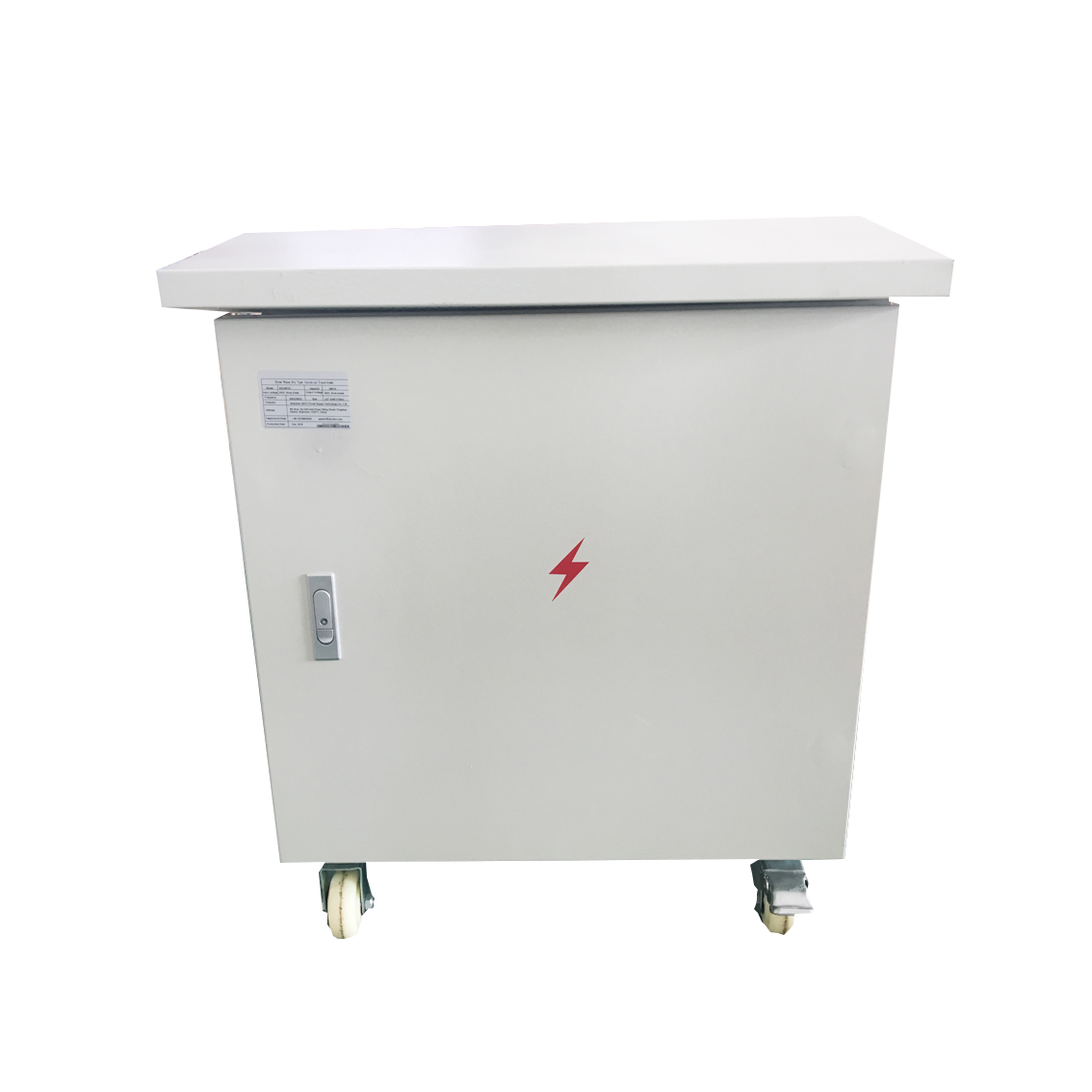

Outdoor Three Phase Isolation Transformer

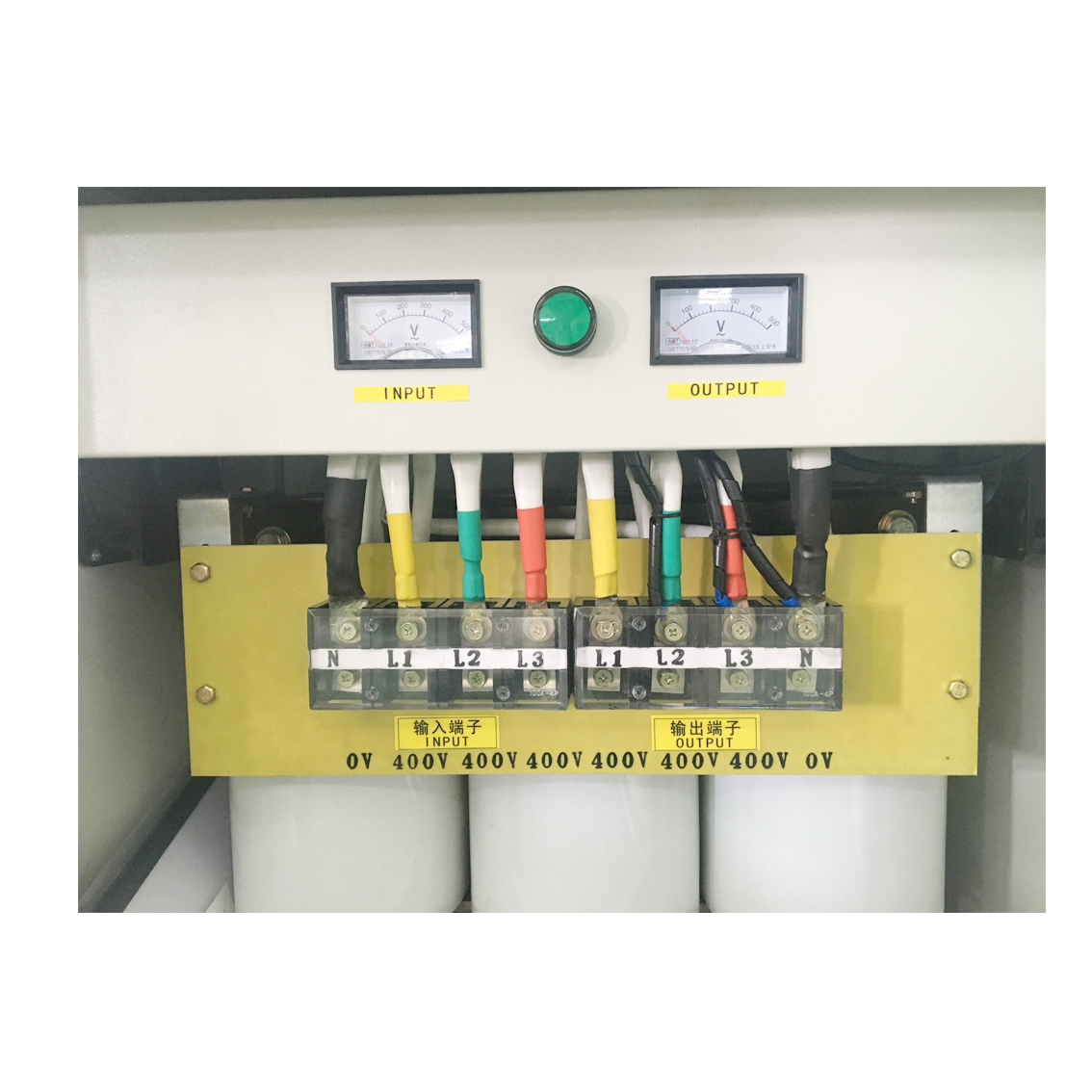

Outdoor Use Three Phase Isolation Transformer is the device which transform alternating current (AC) electrical power from primary to secondary side, makes it ideal for use in the electrical and the engineering industries. It has two digital display to show input voltage and output voltage, transparent plastic plate on the enclosure, humanized design to monitoring the voltage. Pure copper windings or aluminum windings are available to choose.

Product information

Desc #

Outdoor Use Three Phase Isolation Transformer

Type

Dry type

Input Voltage (Primary)

110V/ 120V/ 208V/ 220V/ 230V/ 240V/ 380V/ 415V/ 480V (or customized)

Output Voltage (Secondary)

110V/ 120V/ 208V/ 220V/ 230V/ 240V/ 380V/ 415V/ 480V (or customized)

Phase

Three Phase

Frequency

50Hz/60Hz

Insulation Resistance

≥5 MΩ

Electrical Strength

3000V AC/1 min

Efficiency

>95%

Power Factor

0.8

Noise

35-65dB (1 meter)

Enclosure

Outdoor use metal enclosure

Ambient Temperature

-20C~45℃

Relative Humidity

0~90%, Non-condensing

Cooling Method

Dry type air cooling

lGood over load ability

lWith fan for air cooling

lHigh efficiency

lGauge to display voltage

lLong lifespan

lEasy to install and operate

lWide applications
Outdoor Three Phase Isolation Transformer is widely used for solar inverter, construction site, filter machine, etc. The enclosure is waterproof and dust-proof to resist harsh environment of outdoor. The capacity varies from 5KVA to 2000KVA, for customer to choose. High efficiency, stable performance, long lifespan from ABOT Power Supply. Outdoor Use Three Phase Isolation Transformer information are as below.

Product Feature And Application
Outdoor Use Three Phase Isolation Transformer is widely used for CNC machine, Lighting, Medical Equipment, Automation Equipment.
Product Details
The Details of Outdoor Use Three Phase Isolation Transformer as below:
Product Qualification
The Qualification of Outdoor Use Three Phase Isolation Transformer as below:
Deliver,Shipping And Serving
Outdoor Use Three Phase Isolation Transformer will be covered by stretch film, then packed with a standard exporting wooden box. Can be shipped by Express, Air and Sea transportation.
