SBW Series Servo Three Phase VoltageStabilizer

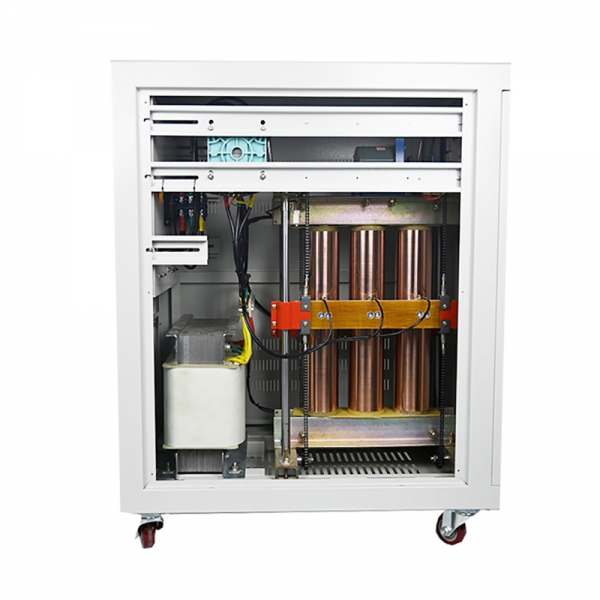

SBW Series Servo Three Phase Voltage Stabilizer is mechanical stabilizer, it has good overload ability to be used for the load equipment which has current impact. Designed with copper roller/cylinder, servo motor and auto circuit board, when the voltage from main grid fluctuates, the servo motor will start working to stabilize the voltage to the rated value. It has various protections, such as over voltage, under voltage, over current, short circuit, phase loss, manual bypass. All the parameters will be displayed on the LCD panel, convenient to monitoring and operate.

Product information

Desc #

Copper Cylinder Type Servo Three Phase Voltage Stabilizer

Technology

Servo motor control system

Input Voltage

380V±20%, or customized

Output Voltage

380V±2%, or customized

Phase

Three Phase

Frequency

50Hz/60Hz

Response Time

<1 sec.(against 10% input voltage deviation)

Accuracy

±2%

Efficiency

>98%

Power Factor

0.8

Protections

over voltage, under voltage, over current, short circuit

Waveform Distortion

No additional waveform distortion

Insulation Level

Level H, 180℃

Ambient Temperature

-20C~45℃

Relative Humidity

0~90%, Non-condensing

Cooling Method

Forced ventilation (Fan)

lServo motor controlled, high over load ability

lFull automatic stabilizer

lWith compensation transformer, wide input voltage range

lWith fan for air cooling

lQuick response to voltage fluctuations

lHigh efficiency

lLCD display, easy to operate

lFull Protections
Copper Cylinder Type Servo Three Phase Voltage Stabilizer is very popular in industrial use, such as laser machine, CNC, injection molding machine, railway, freeway etc, due to the long lifespan and reliable performance, it sells very well all over the world. Customized voltage and additional protections are available for us to meet customer requirements, welcome send us inquiry for Copper Cylinder Type Servo Three Phase Voltage Stabilizer.

Product Feature And Application
Copper Cylinder Type Servo Three Phase Voltage Stabilizer is widely used for home appliances, hotels, office buildings, college students‘ dormitory.
Product Details
The Details of Copper Cylinder Type Servo Three Phase Voltage Stabilizer as below:
Product Qualification
The Qualification of Copper Cylinder Type Servo Three Phase Voltage Stabilizer as below:

Deliver,Shipping And Serving
Copper Cylinder Type Servo Three Phase Voltage Stabilizer will be covered by stretch film, then packed with a standard exporting wooden box. Can be shipped by Express, Air and Sea transportation.
