SVC Series Servo Three Phase Voltage Stabilizer

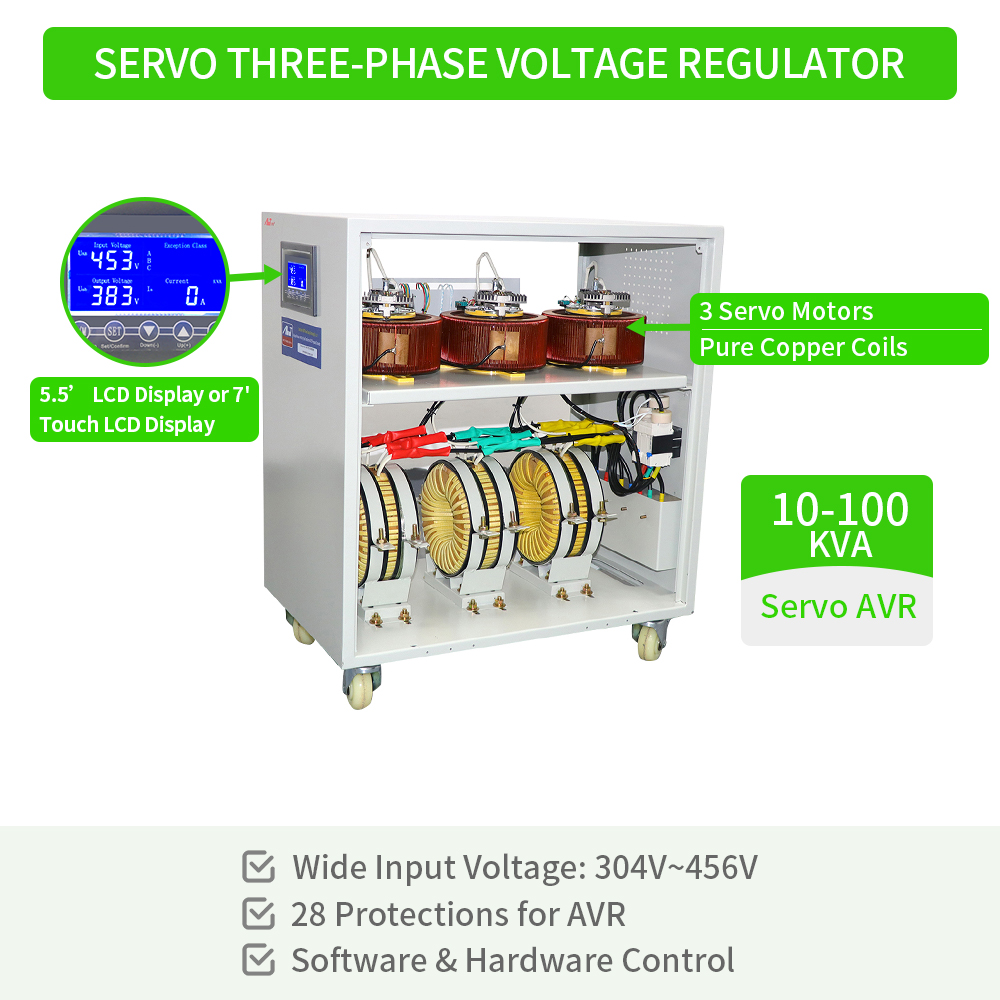

Coil Type Servo Three Phase Voltage Stabilizer based on servo technology, when the input voltage fluctuates, the servo motor will start working, the carbon brush will move on the copper coil to the right position, so as to get a stable output voltage, it is independent regulation on three phase, perfectly solve three phase imbalance problem, LCD panel with all parameters showed, easy to set up and monitoring. Due to its stable performance and good over voltage ability, it is widely used for lab, electronic testing machine, medical equipment, railway, telecommunications, banks, data center etc.

Product information

Desc #

Coil Type Servo Three Phase Voltage Stabilizer

Technology

Servo motor control system

Input Voltage

380V±20%, or customized

Output Voltage

380V±2%, or customized

Phase

Three Phase

Frequency

50Hz/60Hz

Response Time

<1 sec.(against 10% input voltage deviation)

Accuracy

±2%

Efficiency

>98%

Power Factor

0.8

Protections

over voltage, under voltage, over current, short circuit

Waveform Distortion

No additional waveform distortion

Insulation Level

Level H, 180℃

Ambient Temperature

-20C~45℃

Relative Humidity

0~90%, Non-condensing

Cooling Method

Forced ventilation (Fan)

lServo motor controlled, high over load ability

lIndependent regulation on three phase, solve three phase voltage imbalance problem

lFull automatic stabilizer

lWith compensation transformer, wide input voltage range

lWith fan for air cooling

lQuick response to voltage fluctuations

lHigh efficiency

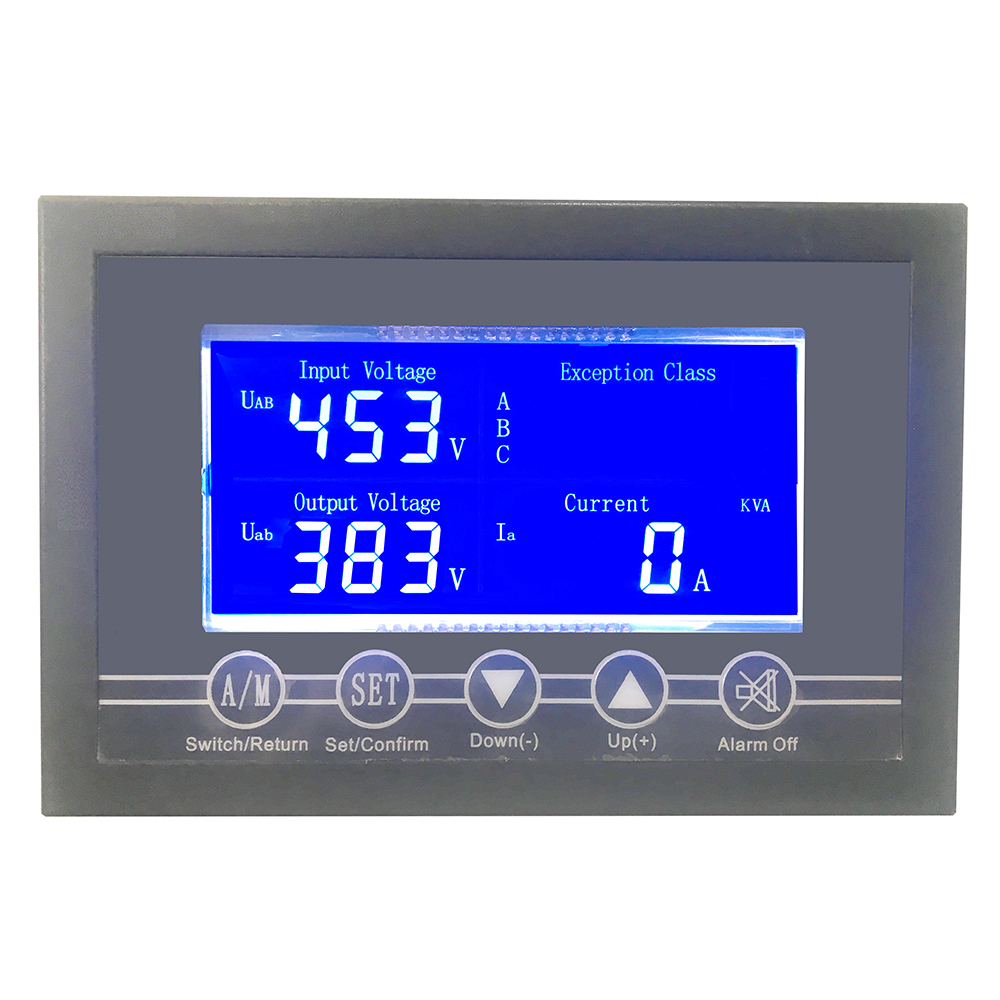

lLCD display, easy to operate

lFull Protections
ABOT supplies Coil Type Servo Three Phase Voltage Stabilizer is produced by ABOT since the year of 2008. We are engaged in voltage stabilizer, dry type transformer, uninterrupted power supply and solar inverter. Due to our strong R&D team and strict quality control system, our product sells very well all over the world. Now we are looking for agents and wholesalers globally to expend our business. The following is about Coil Type Servo Three Phase Voltage Stabilizer details.

Product Feature And Application
Coil Type Servo Three Phase Voltage Stabilizer is widely used for lab, data center, railway, freeway, medical equipment, bank, etc.
Product Details
The Details of Coil Type Servo Three Phase Voltage Stabilizer as below:

Product Qualification
The Qualification of Coil Type Servo Three Phase Voltage Stabilizer as below:

Deliver,Shipping And Serving
Coil Type Servo Three Phase Voltage Stabilizer will be covered by stretch film, then packed with a standard exporting wooden box. Can be shipped by Express, Air and Sea transportation.
