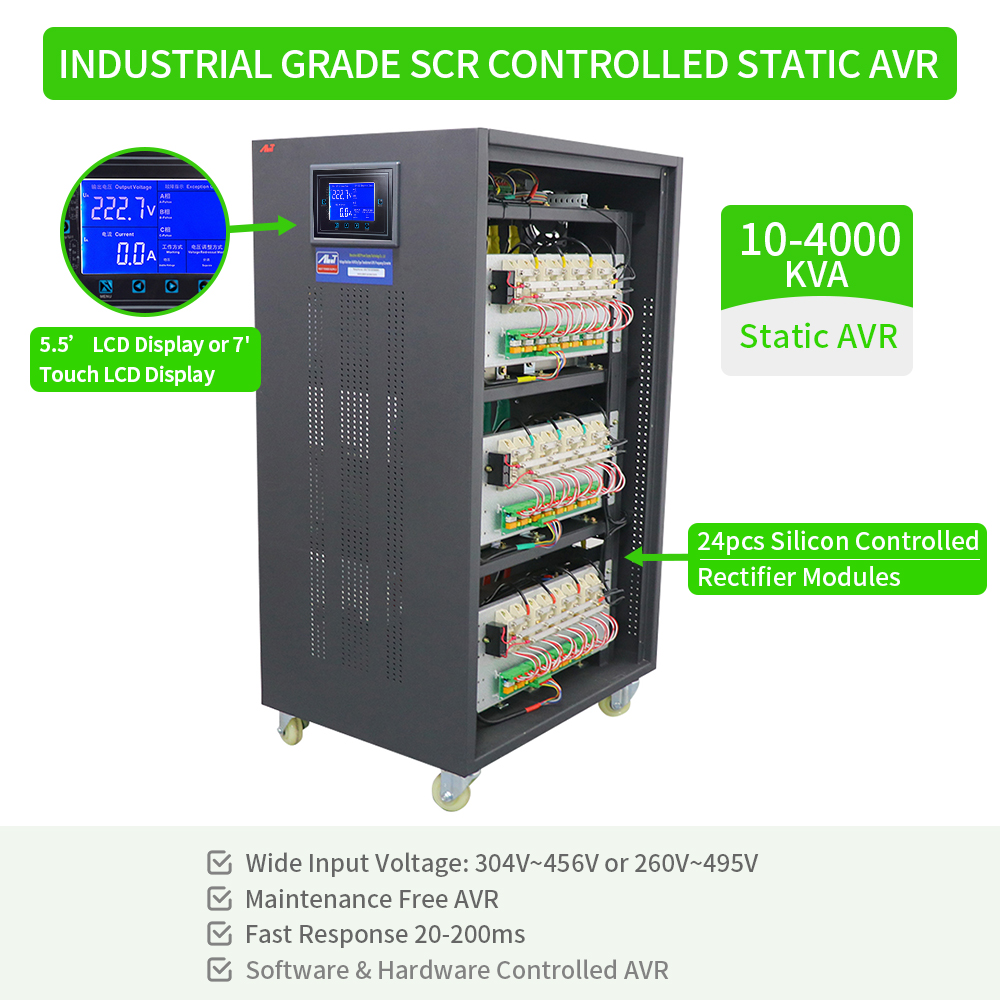

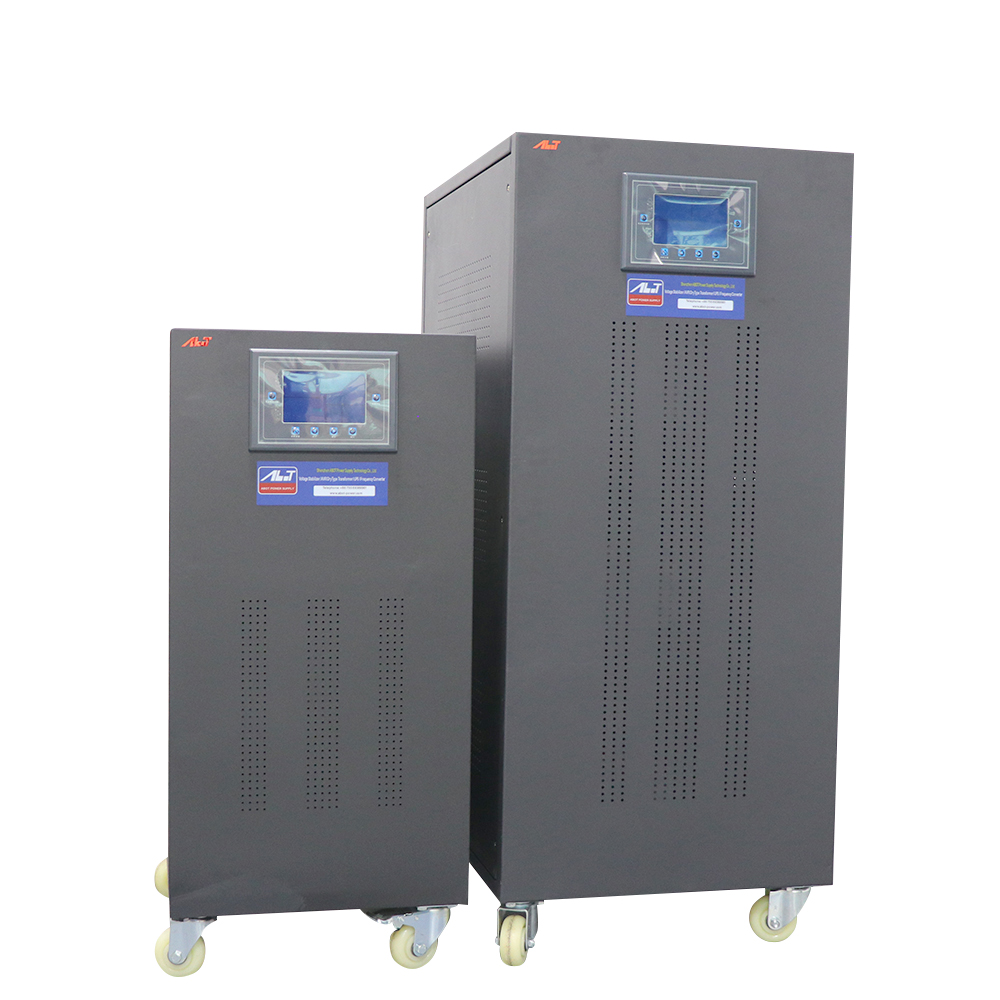

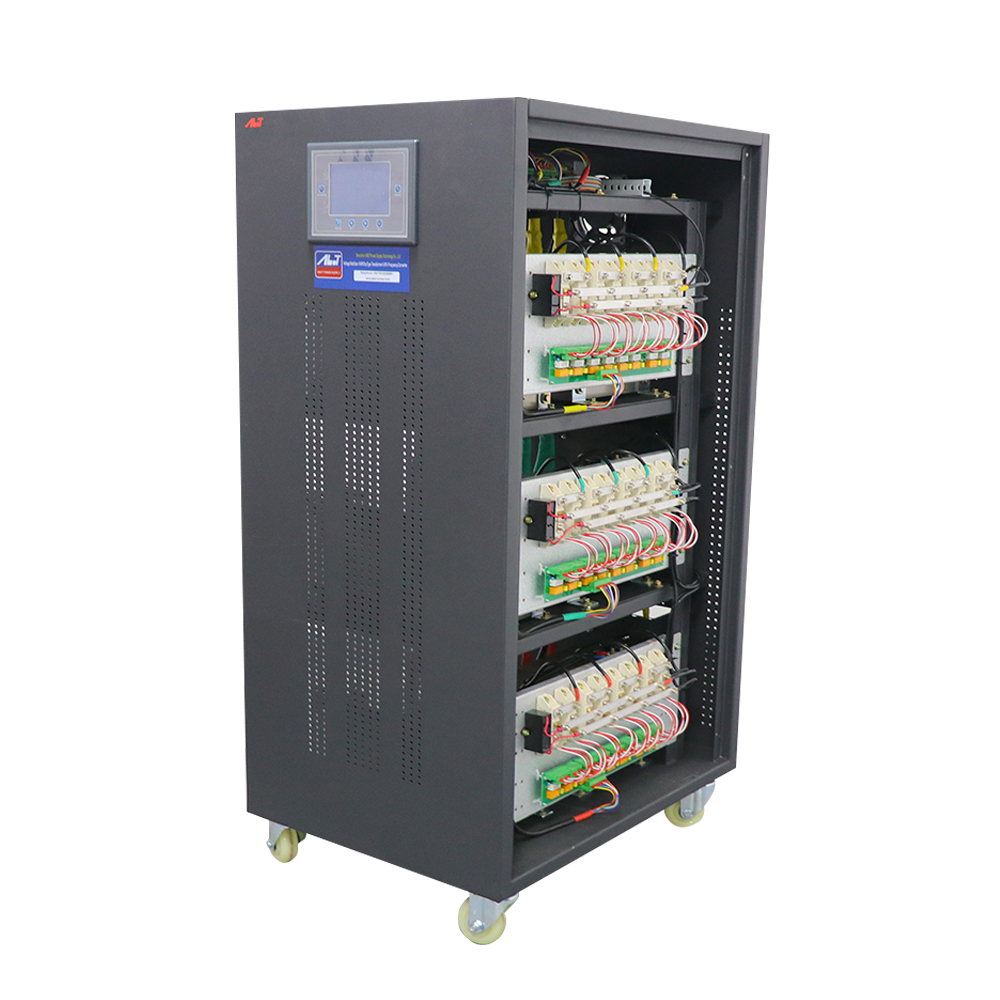

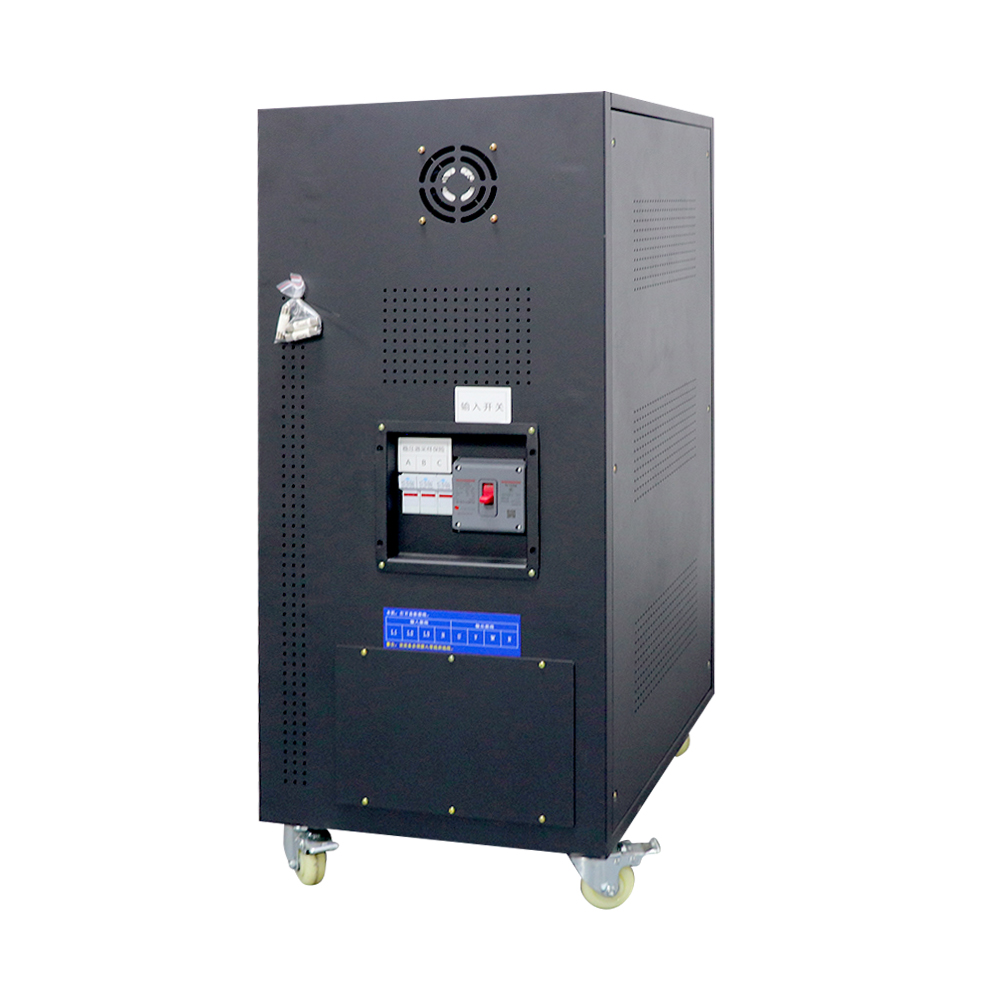

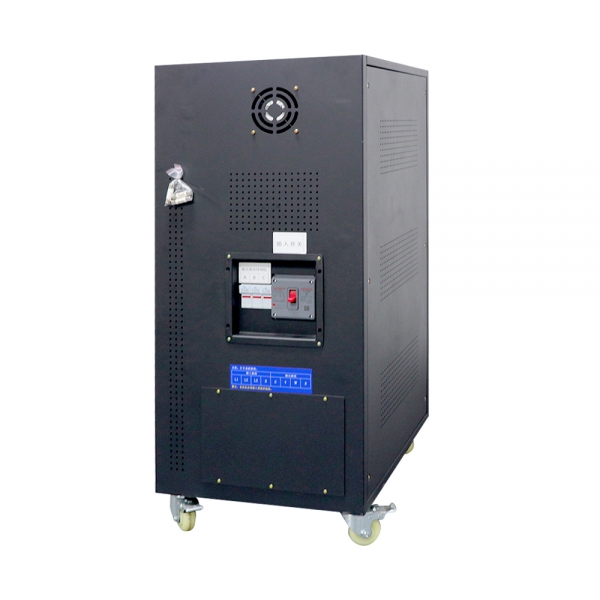

ZBW Series Static Three Phase Voltage Stabilizer

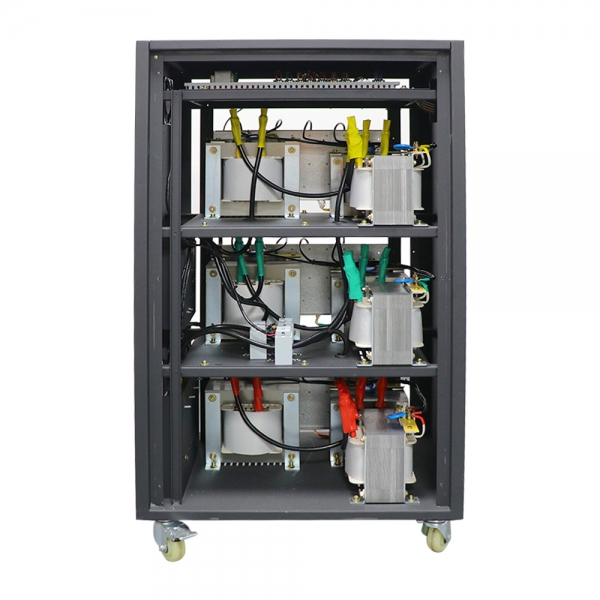

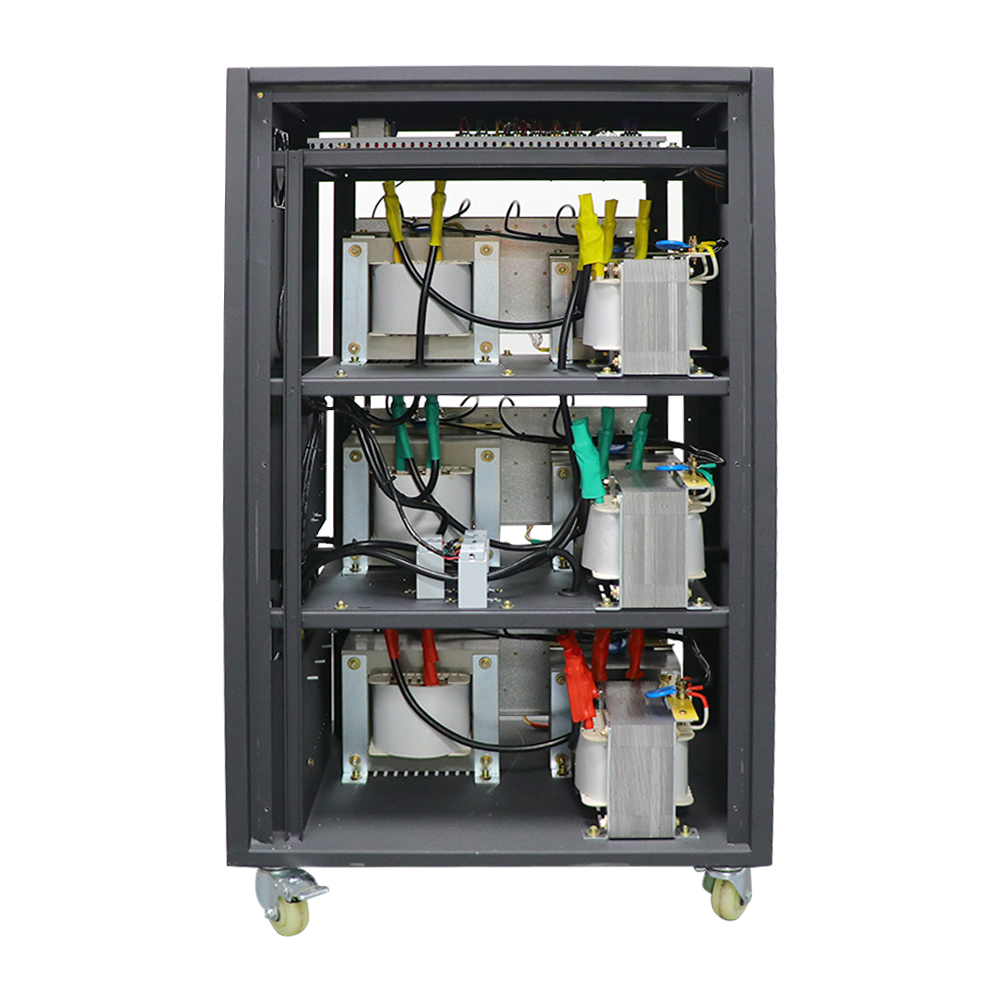

Indoor Use SCR Modular Type Static three Phase Voltage Stabilizer designed with compensating transformer of high primary to secondary ratio for voltage correction of ± 20%. Direct AC-AC converter circuit and SCR module controlled to improve the overall system response with fast voltage correction. Big HMI LCD panel for easy monitoring and operation, PWM control operation using high end DSP controller to achieve correction time of 1 to 1.5 cycle. Equipped with auto bypass to avoid over voltage or under voltage damage to the stabilizer. Manual bypass can be added according to customer request.

Product information

Desc #

Indoor Use SCR Modular Type Static three Phase Voltage Stabilizer

Technology

SCR modular controlled system

Input Voltage

304V~456V, or customized

Output Voltage

38V±2%, or customized

Phase

Three Phase

Frequency

50Hz/60Hz

Response Time

20ms-200ms (against 10% input voltage deviation)

Accuracy

±2%

Efficiency

>98%

Power Factor

0.8

Protections

over voltage, under voltage, over load, over current, short circuit, auto bypass

Waveform Distortion

No additional waveform distortion

Insulation Level

Level H, 180℃

Ambient Temperature

-20C~45℃

Relative Humidity

0~90%, Non-condensing

Cooling Method

Forced ventilation (Fan)

lSCR Modular Controlled , Maintenance Free

lWide Input Voltage Range

lWith Fans For Air Cooling

lQuick Response to Voltage Fluctuations

lHigh Efficiency

lAutomatic Bypass

lMaintenance Free Electronic Voltage Management Technology

lLCD Display For Easy Monitoring

lFull Protections

lRS485 Communication Port
Indoor Use SCR Modular Type Static three Phase Voltage Stabilizer is hot sell product of ABOT Power Supply. Wide applications, such as banks, data center, CNC machine, medical equipment, etc, from 10KVA to 2000KVA are available for customer to choose, equipped with kinds of protections to protect stabilizer. Unique designed with HMI LCD panel, users can operate it easily. Indoor Use SCR Modular Type Static three Phase Voltage Stabilizer. Below are the details of this product.

Product Feature And Application
Indoor Use SCR Modular Type Static three Phase Voltage Stabilizer is widely used for data center, lab, railway, freeway, medical equipment, bank, etc.
Product Details

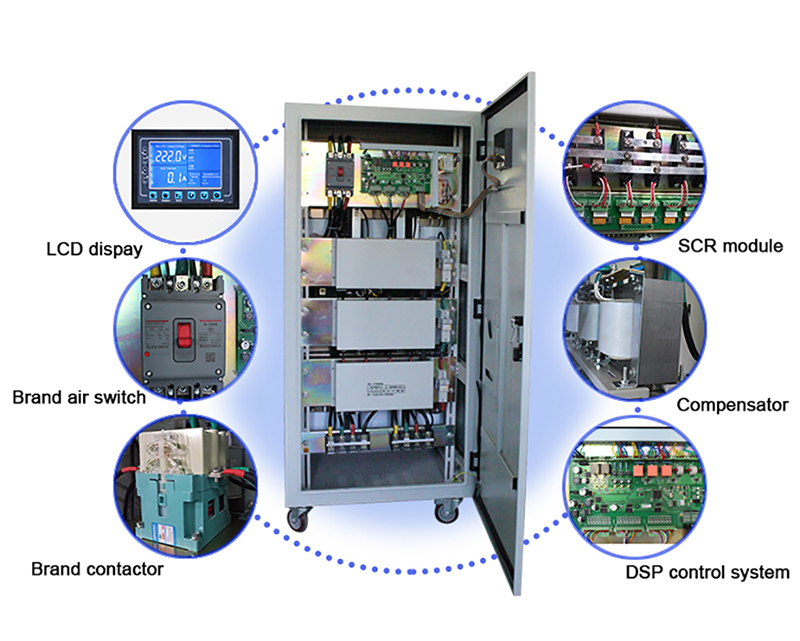

The Details of Indoor Use SCR Modular Type Static three Phase Voltage Stabilizer as below:
Product Qualification
The Qualification of Indoor Use SCR Modular Type Static three Phase Voltage Stabilizer as below:

Deliver,Shipping And Serving
Indoor Use SCR Modular Type Static three Phase Voltage Stabilizer will be covered by stretch film, then packed with a standard exporting wooden box. Can be shipped by Express, Air and Sea transportation.
